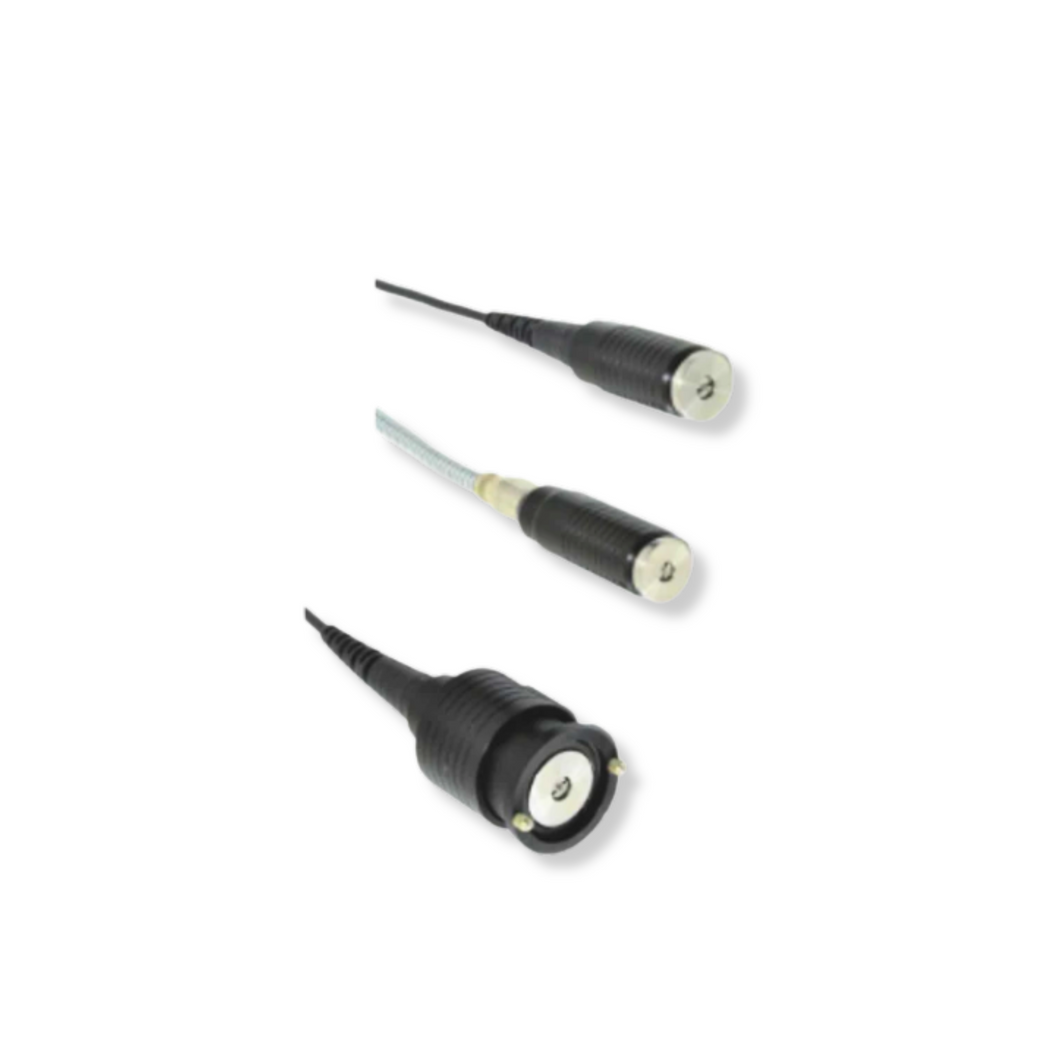

Elcometer 224 Digital Surface Profile Gauge Probes

Flat Surface Profile Probes

Supplied with either standard cables or armoured metal reinforced heavy duty cables, Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils; nominal values 125μm (5.0mils) & 508μm (20mils) and an Elcometer test certificate.

Technical Specification

Range: 0-500μm (0-20mils)

Resolution: 1μm (0.1mil)

Accuracy: ±5% or ±5μm (±0.2mil)

Probe Design

Part Number

Minimum
Headroom

Minimum Sample
Diameter

Flat Surface: Standard

T224C500US

125mm (4.92”)

25mm (1.0”)

Flat Surface: Armoured

T224C500UARM

165mm (6.50”)

25mm (1.0”)

Convex Surface Profile Probes

Supplied with either standard cables or armoured metal reinforced heavy duty cables, Elcometer convex surface profile probes are supplied with a glass zero tile, calibration test foils (nominal values 125μm (5.0mils) & 508μm (20mils) and an Elcometer test certificate.

Technical specification

Range: 0-500μm (0-20mils)

Resolution: 1μm (0.1mil)

Accuracy: ±5% or ±5μm (±0.2mil)

Probe Design

Part Number

Minimum
Headroom

Minimum Pipe
Diameter

Convex Surface: Standard*

T224C500UX

135mm (5.31”)

75mm (3.0”)

Convex Surface: Armoured*

T224C500UXARM

175mm (6.89”)

75mm (3.0”)
